Single-ring absolute encoder
Key words:
Classification:
Product Description
Product overview:
The 12 bit single turn absolute value encoder uses intelligent magnetic sensing elements to convert mechanical rotation or angular displacement into electrical signals through three-axis Hall technology for non-contact measurement. Its products have high resolution, good temperature stability, and are widely used in industrial automatic measurement and monitoring systems, especially for occasions where mechanical changes are frequent, the environment is harsh, and the sensor is required to have a long service life and high reliability. It is widely used in textile machinery, medical machinery, irrigation machinery, paper and printing, electric valves, packaging machinery, robots and mechanical arms, heavy machinery equipment, precision measuring equipment, machine tools and other industries.
Product characteristics:
1. No contact, no noise, high sensitivity, high repeatability, close to the infinite rotating life.
2. Good dustproof and moistureproof property, and strong environmental probation.
3. Small size and light weight, stable and reliable performance.
4. 360 ° absolute position measurement is an ideal product to replace optical encoder and conductive plastic potentiometer.
5. Working voltage: DC5V ± 10%, working current: 12mA, resolution: 12 bits.
6. Three wire SPI bus is used for data communication.
Product advantages:
1. High precision: resolution 12 bits
2. Fast transmission: use bus communication to transmit data

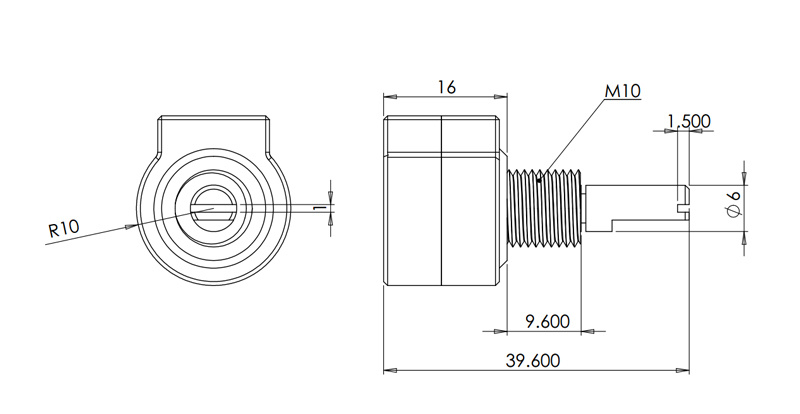

Product size:
